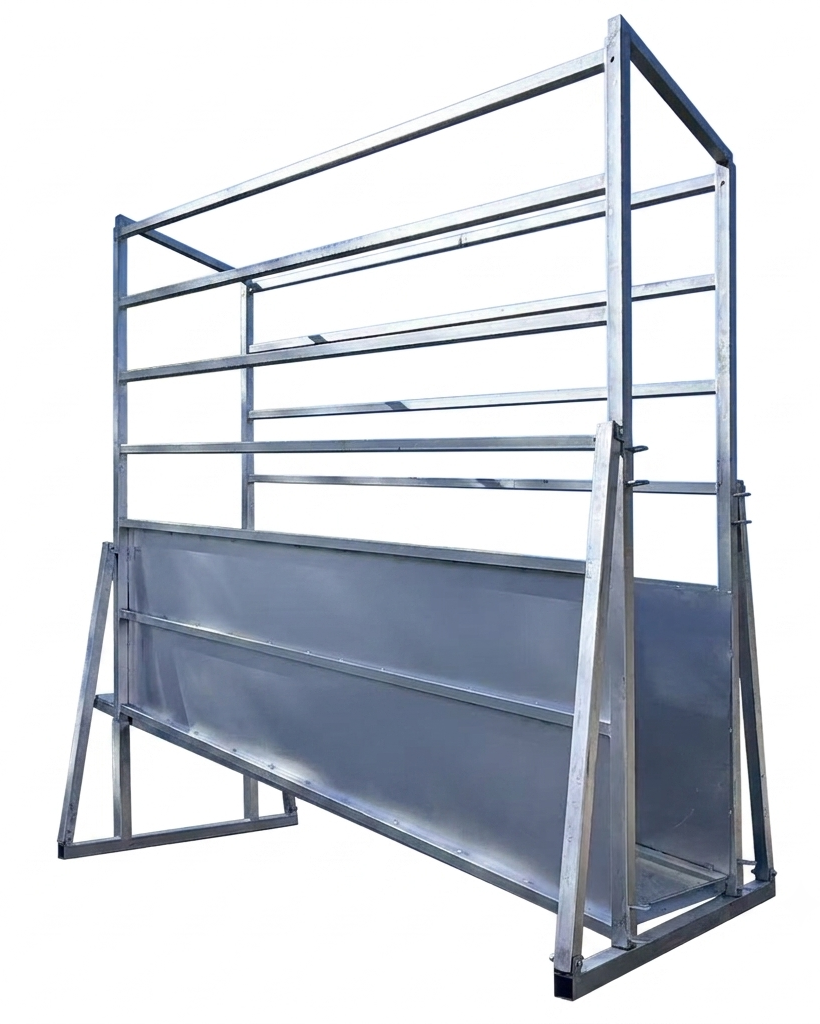

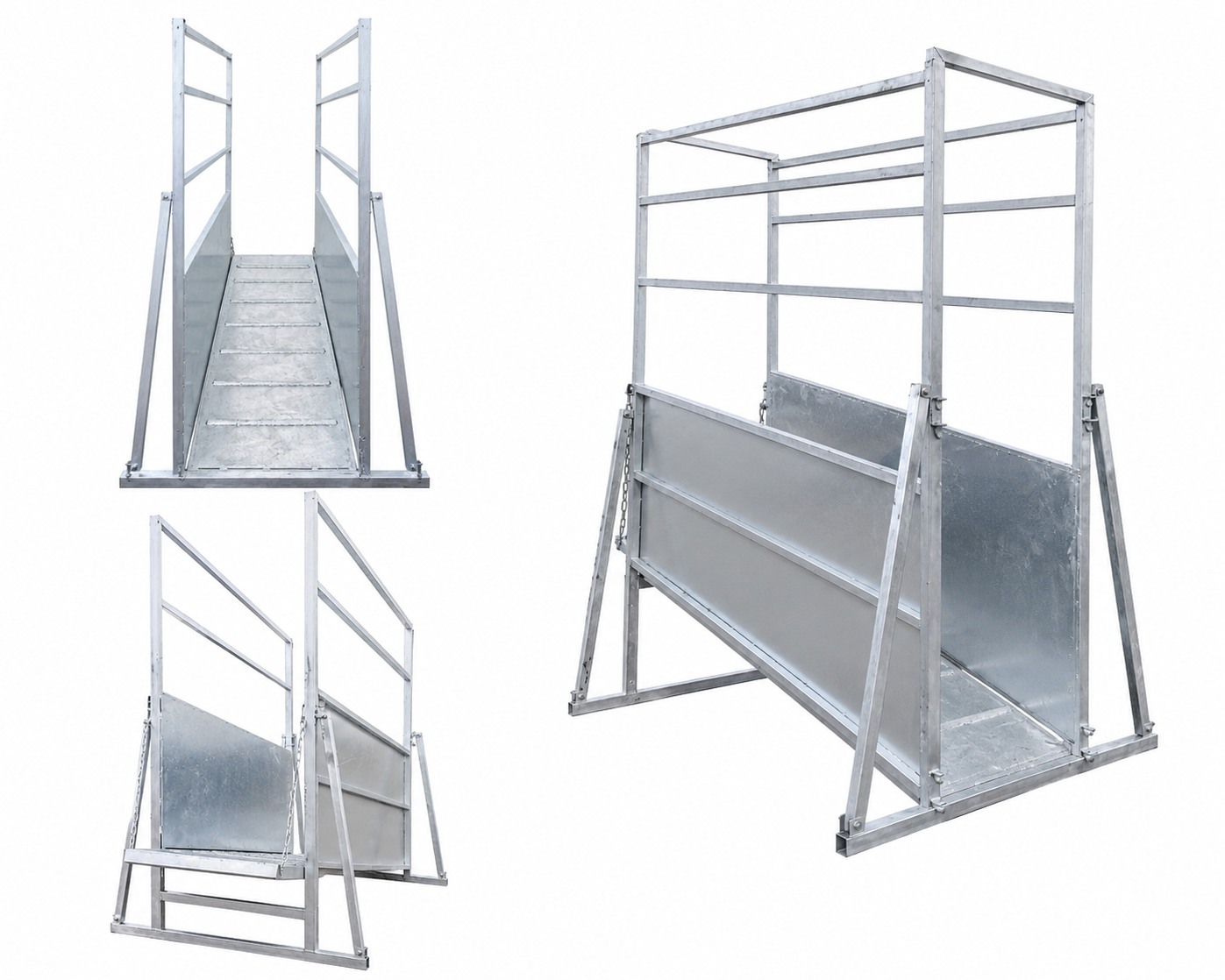

Height Adjustable Cattle Loading Ramp

Hot dip galvanized adjustable loading ramp for Cattle Yard

·         Length: 2850mm, Width: 750mm, Height: 3242mm,

·         Vertical Frame: 60*60*2mm

·         Top Side Long Tube: 40*40*2mm

·         Side Galvanized Sheet: 1.6mm

·         Bottom Side Long Tube: 60*60*2mm

·         Galvanized Foot-board: 2mm thick

·         Frame Tube: 50*50*2mm

·         Foot-board Tube: 25*25*2mm

·         U lugs: 100*70*4mm

·         Weight: about 400kg/set
